Emergency Vehicle Graphics & Reflective Conspicuity Striping
Reflective conspicuity striping, chevrons, unit numbering, and department branding for ambulances, fire apparatus, utility trucks, and trailers, one specialty, handled by people who work in this material regularly.
Most quotes go back the same or next business day. No deposit to get a number.
Graphics on an emergency or utility vehicle have a job to do beyond branding. They identify the unit, they make it visible on scene and on the shoulder at night, and they have to survive years of outdoor exposure, weather, and constant washing.
Reflective film also behaves differently than standard vinyl. It's engineered with glass beads or micro-prisms that bounce light back toward its source, so alignment, overlap, and clean sealed edges matter more than they do on an ordinary graphic. A sloppy reflective install doesn't just look wrong. It can make the material perform worse than it should.
This is a deliberate area of focus for us, not a bolt-on: chevron and edge conspicuity striping, high-intensity sheeting, DOT-style conspicuity tape on trailers, hi-vis panels, unit numbers, medallions, and full department branding.
We work directly with fire departments, EMS agencies, and municipal fleets, and we also work with apparatus upfitters, dealers, and national partners who need a local installer to finish a specific unit or delivery. Reflective elements are commonly designed in alongside a fleet wrap so they look intentional rather than added on afterward.
What You Get With Emergency & Reflective Graphics
The details that decide whether the finished job still looks right years from now, not just on install day.
Conspicuity Striping & Chevrons
Rear chevron and edge striping installed to your department's specified pattern, sizing, and placement, or laid out from scratch if you need a pattern developed.
High-Visibility Panels & DOT Tape
Hi-vis side and rear elements plus DOT-style conspicuity tape on trailers and trucks that need to be seen in low light.
Unit Numbers, Medallions & Department Branding
Consistent numbering, seals, and department graphics across ambulances, engines, and support vehicles.
Precision Alignment & Edge Sealing
Careful layout and sealing so reflective material performs the way it's engineered to and doesn't lift or peel early.
Built for Alabama Weather & Duty Cycles
Materials and technique selected for vehicles that live outside, get washed often, and can't afford an early failure.
Matched to Your Existing Fleet
Send photos or specs from a unit already in service and we'll match layout and materials so new deliveries stay consistent.
Industries We Work With
Why the Edges Matter

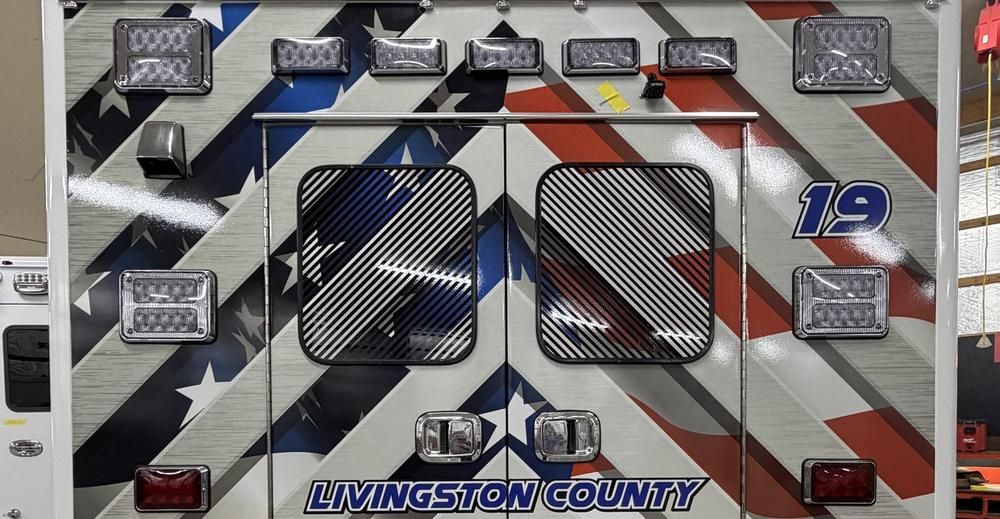

On a normal graphic, a slightly lifted edge is a cosmetic issue. On reflective sheeting, it's a performance issue. Moisture gets under the film, the prismatic layer degrades, and the panel stops returning light the way it was engineered to.
That's why reflective jobs get sequenced differently here.
- Measured layout confirmed before anything is cut
- Overlap direction set so water sheds instead of collecting
- Sealed edges on every panel that will see road spray
- Chevron angle and spacing held to the department's spec, not eyeballed
- Panel seams placed away from high-flex and high-wash areas
Not All Reflective Sheeting Does the Same Job
Departments get quoted “reflective” as if it were one product. It isn’t. The construction of the film decides how much light comes back, how wide the viewing angle is, and what it costs. Here is the short version, so you can read a quote properly.
Engineer Grade
Glass-bead construction. The entry tier. Fine for low-speed, well-lit environments and for graphics that are decorative more than functional. Under-specified for a rear chevron panel on a highway shoulder.
High Intensity Prismatic
Micro-prismatic instead of beads. Returns substantially more light and holds up better at the shallow angles you get when a driver is approaching from a distance. The common working choice for apparatus striping.
Diamond Grade & Fluorescent
The top tier, including fluorescent yellow-green. Highest return, widest viewing angle, and daytime visibility that ordinary reflective does not give you. Costs more. On a rear-facing chevron it is usually where the money should go.
An Ambulance Is Not a Pumper
Each apparatus type fails in its own way, and the install has to account for that up front rather than after the first season.

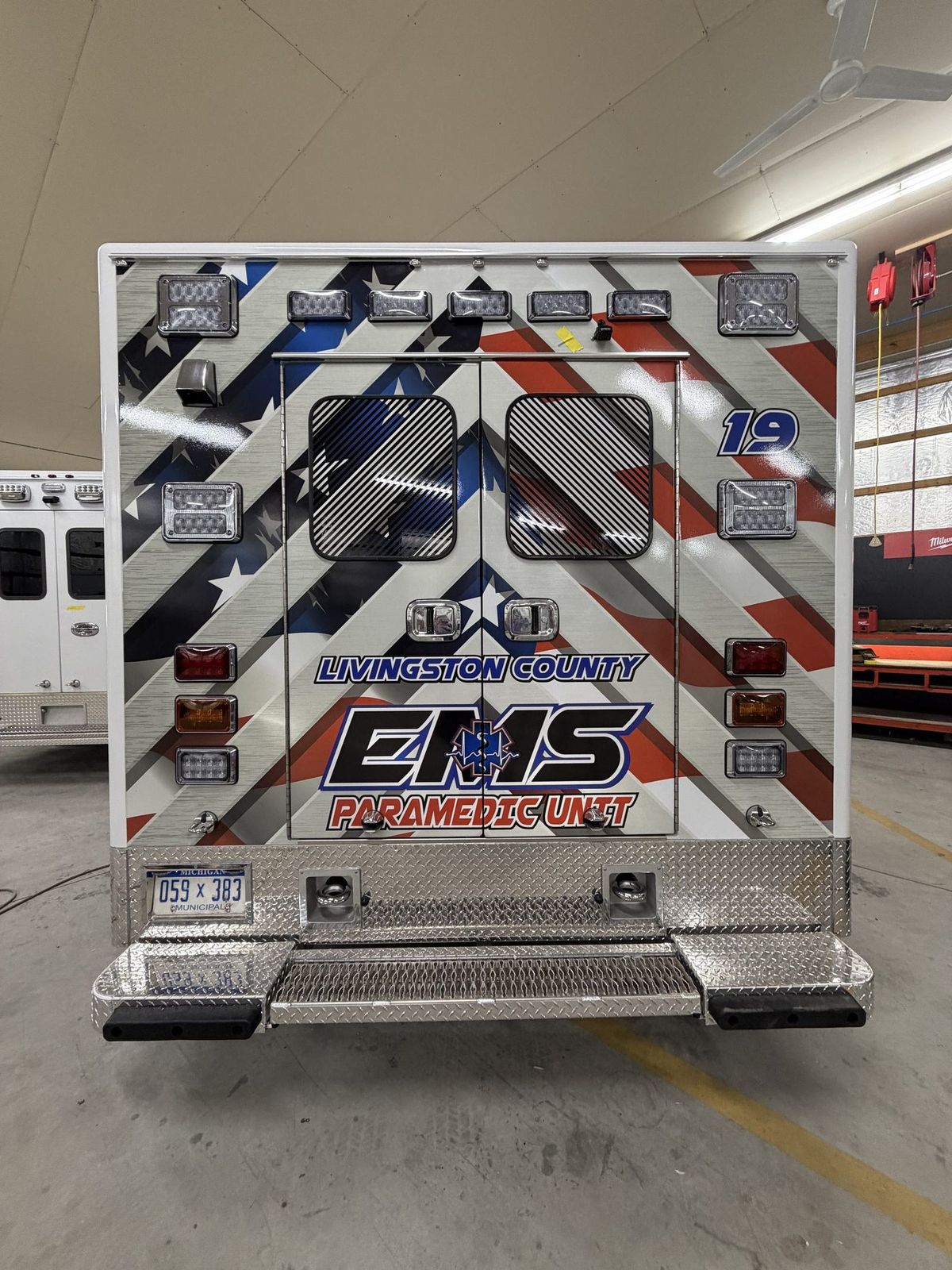

Ambulances and medic units are mostly flat vertical panel, which sounds easy until you count the seams, compartment doors, and hardware breaking up the run. Striping has to stay continuous across gaps that move independently.
Engines and pumpers are the hard ones. Rolled edges, diamond plate, tread surfaces, hose bed openings, and hardware everywhere. Reflective sheeting does not conform like cast wrap vinyl, so panels get planned around obstructions instead of forced over them.
Command, brush, and support vehicles are usually production trucks and SUVs, and they get treated like a fleet vehicle with hi-vis requirements layered on.
Trailers and utility bodies mostly need DOT-style conspicuity tape run correctly. Simple work, done wrong constantly, and it is the first thing an inspector looks at.
The Real Constraint Is the Unit, Not the Vinyl
A department cannot put a frontline unit out of service for a week because a shop wants a comfortable schedule. That is usually the actual limiting factor on this work, and it should be part of the conversation at quote time rather than a surprise later.
We plan around it. That can mean prepping and pre-cutting everything before the unit ever arrives, splitting a job across two shorter visits, or sequencing a multi-unit order so the department never has more than one vehicle down at a time.
Tell us what you can afford to lose and for how long. We will build the schedule from that number instead of handing you ours.
We’ll Quote Against Your Spec Sheet
Municipal and county purchasing has its own rules, and a quote that ignores them creates work for whoever has to process it. Send the spec sheet, the striping requirement, or the RFP language and we will price against it line by line rather than sending a lump-sum number nobody can evaluate.
- Itemized quotes that map to your spec, so line items can be compared
- Material grades named explicitly, not described as “reflective”
- Quotes written to survive a purchasing review without a follow-up call
- Comfortable working with apparatus dealers and upfitters on new deliveries
- Matching to units already in service so a fleet stays consistent across budget years
Have a Unit That Needs Striping?
Send a spec sheet, a photo of a unit already in service, or just a description. We will come back with materials, a number, and a schedule that keeps the vehicle in service.
Common Questions
Do you work directly with fire departments and EMS agencies, or only through apparatus builders?
Both. We work directly with departments and agencies on graphics and striping, and we also work with apparatus upfitters, dealers, and national partners who need a local installer for a specific unit or delivery.
What's the difference between reflective film and regular vinyl?
Reflective sheeting is engineered with glass beads or micro-prisms that bounce light back toward its source. That's why precise alignment, overlap, and clean sealed edges matter more than they do with standard vinyl graphics.
Can you match striping and reflective patterns to our department's existing fleet?
Send photos, specs, or an existing unit's pattern and we'll match materials and layout so new units stay consistent with the rest of your fleet.
Do you install DOT-style conspicuity tape on trailers?
Yes. That's a regular part of this service, alongside custom reflective striping and hi-vis panels for trucks and emergency apparatus.
What reflective materials do you use?
Material selection depends on where it's going on the vehicle and the visibility standard you're working from. We'll walk through options and confirm specs with you during the quote before anything is ordered.
Can reflective striping be combined with our regular fleet branding?
It's commonly designed in alongside a fleet wrap so the reflective elements look like part of the vehicle's design rather than something added afterward.
Can you quote a job from a department spec sheet or RFP?
Send over the spec sheet or striping requirements and we'll put together a quote against those specifications.
Serving North Alabama from Madison
Our shop is in Madison, and we work across the Tennessee Valley. If you're in one of these cities, start here.
